| Article number: |
WOECO001 |
| Availability: |
In stock
|

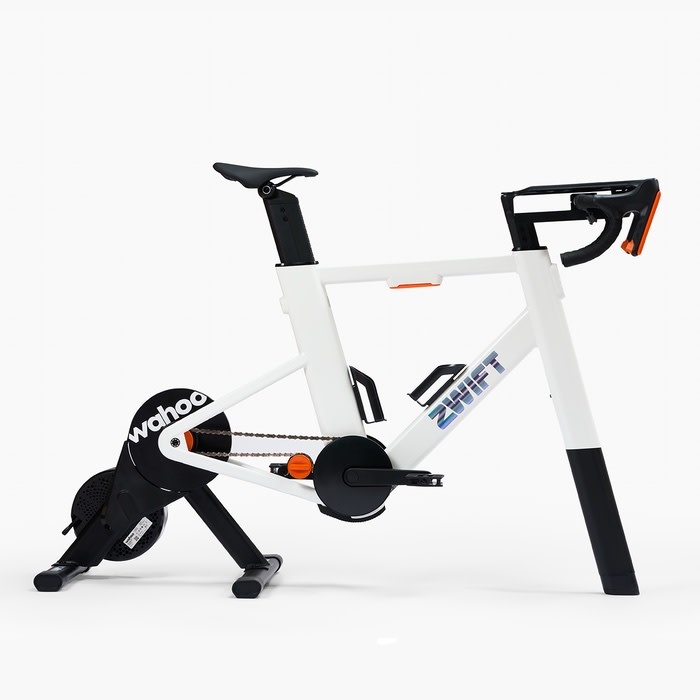

Zwift Ride with KICKR CORE 2 offers an all-in-one, complete setup to unlock the best virtual experience in the worlds of Zwift. The proven KICKR CORE 2 smart trainer sets the foundation for responsive resistance and reliable power, paired with the Zwift Ride Smart Frame to enable seamless control of your Zwift riding experience at your fingertips.
Designed with simplicity in mind—a single tool that stows away on the frame is all it takes to assemble, dial in your bike fit, and adjust between users. Zwift Ride includes all of the hardware you need to get started on Zwift.
What's Included
WAHOO KICKR CORE 2
Smart trainer with Zwift Cog

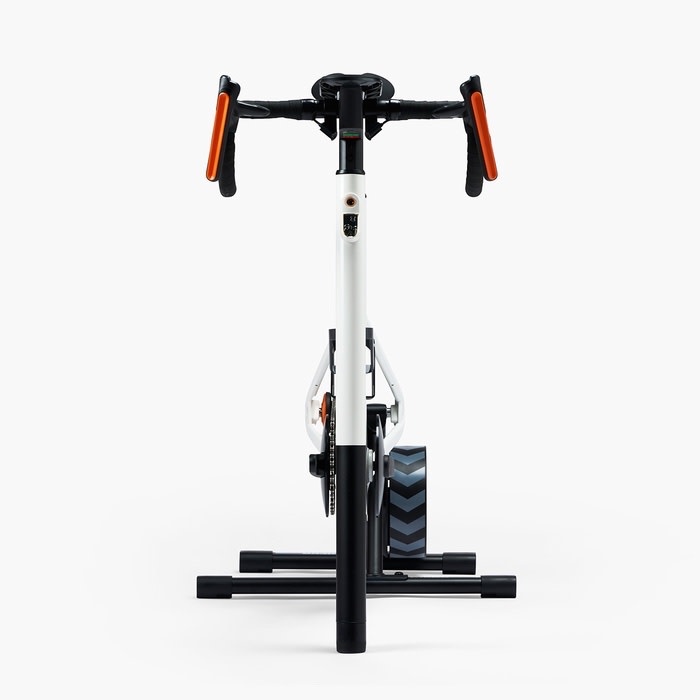

ZWIFT RIDE Smart Frame
Frame with integrated controllers
- Handlebar with Controllers
- Thru Axle
- Allen Key
- Phone Tray Mat
- Frame Key
- Left & Right Pedals
- Charging Cable for controllers
- Cable Tidies
Tech Specs
Rider Fit Specs
- Rider Fit Range: 5’ - 6’6”
- Saddle Height Min-Max: 59.9 cm-86.5cm (center bottom bracket to top of saddle)
- Stepover Height: 30 in
- Max Rider Weight: 260 lbs.
- Crank Length: 170mm
Product Dimensions and Frame Specs
- Product Dimensions: 53.5 in L x 23.75 in W
- Product Weight: 78 lbs.
- Drivetrain: Chain
- Pedals: Flat Included (compatible with standard road and mountain pedals)
- Saddle: 160mm W x 245mm L

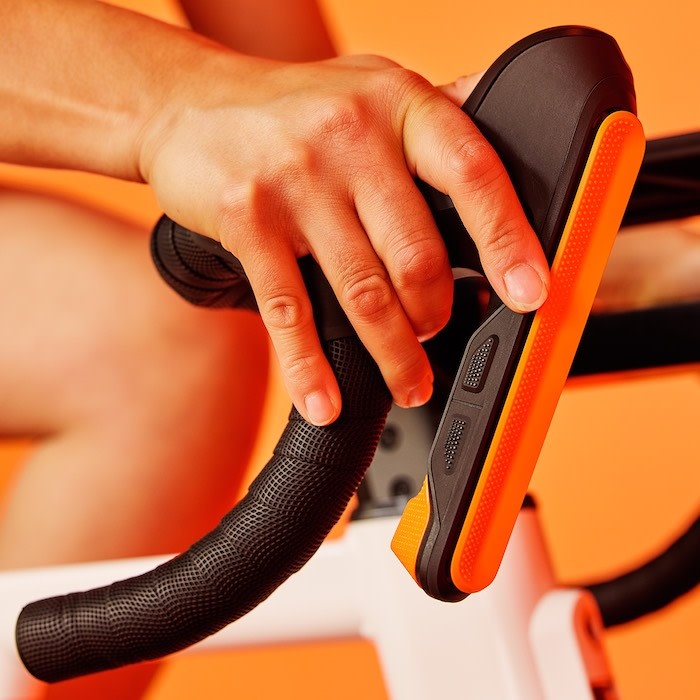

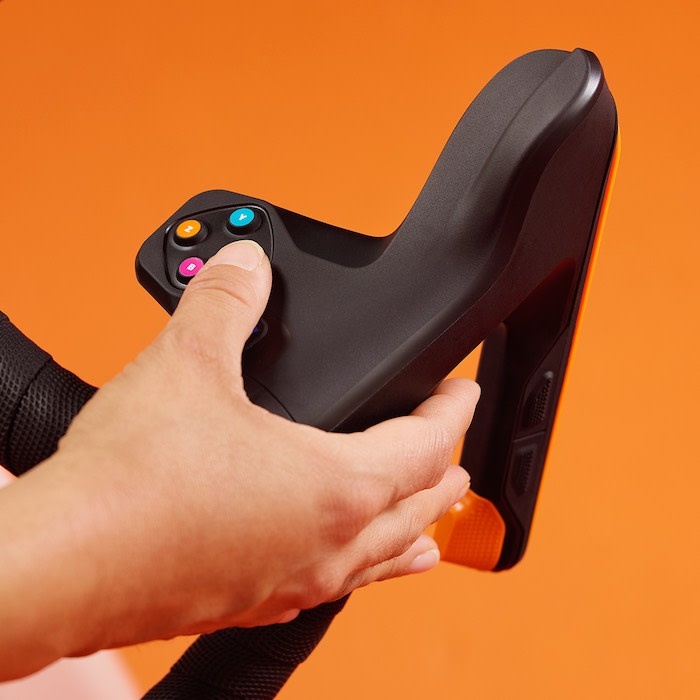

Handlebar Specs
- Handlebar Height Min-Max: 34 - 40 in.
- Handlebar Width: 16.5 in / 42 cm (center to center)
- Integrated rechargeable controllers with 20 hrs. per charge
- Handlebar Controller Power: Built-in rechargeable lithium-ion battery (1050 mAH)
- Handlebar Controller Power requirements: USB-A, 5v, 1A
Performance and Data
- Power Accuracy: +/- 2%
- Maximum Power Output: 1800W
- Maximum Simulated Grade: 16%
- Resistance Type: Electromagnetic
Connectivity
- LED indicator lights confirm the trainer and handlebars are powered, connected, and transmitting via Bluetooth.
- Speed, distance, cadence, and power are wirelessly transmitted.
- In-game shifting, steering and UI control via handlebars are wirelessly transmitted.
- Apple TV users are required to pair through Zwift Companion app as a bridge to address the limited number of Bluetooth connections. A heart rate monitor can be connected directly to the KICKR CORE 2, or if needed, to the Zwift Companion app for added Bluetooth connections.
- Compatible with Zwift and ROUVY apps
